Phased Array (PAUT)

With PAUT technology, we can do continuous inspections at 350°C (662°F). The high temperature PAUT NII inspection method is the ideal solution for weld flaw detection, corrosion mapping and the detection of other types of cracking.

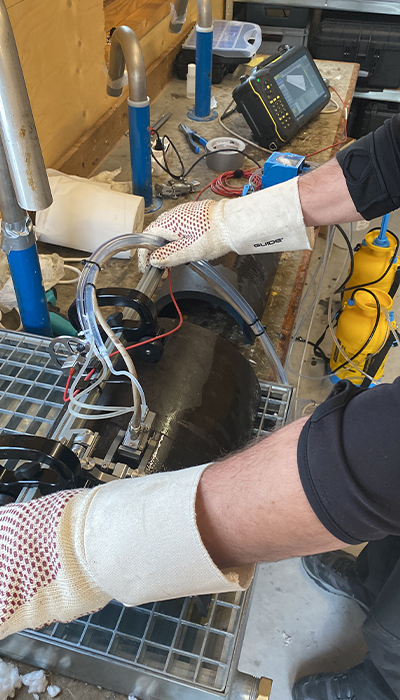

Phased Array Inspections at high temperatures

Special high temperature resistant PAUT probes and wedges were designed for SonoInspec, to be used up to 475°C (887°F). The PAUT technology can be continuously used up to 350°C (662°F). The wedges are designed with cooling channels to keep the temperature under control. Special couplant and wedge material is used to accommodate the ultrasound beam travelling into the material. High temperature PAUT probes are made in a way that they can resist elevated temperatures.

Want to learn more about Phased Array?

Fill out your e-mail address and we’ll send you our brochure. And don’t worry - we hate spam too 😉

Benefits of Phased Array

3D imaging with Total focussing method (TFM)

Continuous weld inspection up to 350°C (662F)

Replacement for radiography

PAUT is the ideal solution for weld flaw detection & corrosion mapping

The high temperature PAUT NII inspection method is the ideal solution for weld flaw detection, corrosion mapping and the detection of other types of cracking. Up to 350°C (662°F) SonoInspec has standardised and validated the PAUT inspections as per the ISO pre-service standard for pressure equipment (EN-ISO 10863).

Reach out to us
Phased Array PAUT inspection

Phased Array is one of the main ultrasonic testing technologies at SonoInspec

Phased Array Ultrasonic testing (PAUT) is one of the main ultrasonic testing technologies available at SonoInspec. PAUT probes are build up with several piezoelectric elements, which can be fired individually. The combination of these pulses, controlled by computer calculated timings, create the phase aspect of the technology. The ultrasonic beam can be focused, shaped and moved electronically.

Our partners include:

Sintra Engineers
MISI
Waygate Technologies
ICE
NDTS India
Sonotech Trinidad

Multiple ways of how the PA probe can be operated

For service work on site, we position the PA probe on a wedge. There are different ways how the probe can be operated. The beam can be positioned under an angle, or programmed in a way that several angles are covered (sectorial scan). The Total Focussing Method (TFM), which is also available on the SonoInspec equipment (VEO 3), is based on firing with one element and receiving with all elements. An algorithm reconstructs the received signals from all the shots and displays the signals in a 3D view, where focus is on all the pixel positions in the grid.

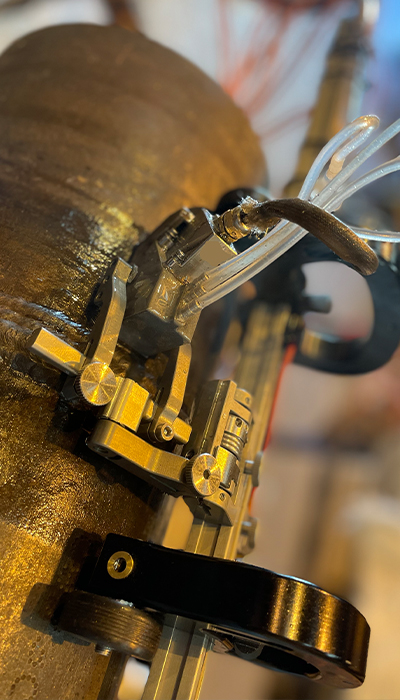

PAUT Wedge

Advantages of PAUT over conventional UT:

  • PAUT is more accurate

  • PAUT reduces the false call rate

  • PAUT is much more efficient and faster, because of the software capabilities and electronic options for beam steering available

Reach out to us

500K $+

savings

Increase your plant availability with PAUT

PAUT as an alternative for radiography inspections will increase your plant availability, since you do not have to abandon parts of your plant. PAUT is an excellent technology for inspection on complex geometries, like nozzles. PAUT can be used for weld inspections, corrosion inspections, monitoring, NII Inspections and inspections on small bore piping starting from 2” and larger diameters.

PAUT can be applied on different type of materials, like carbon steel, stainless steel and composites. PAUT of SonoInspec will increase your HSE performance, reduces your cost and increases your plant availability!
